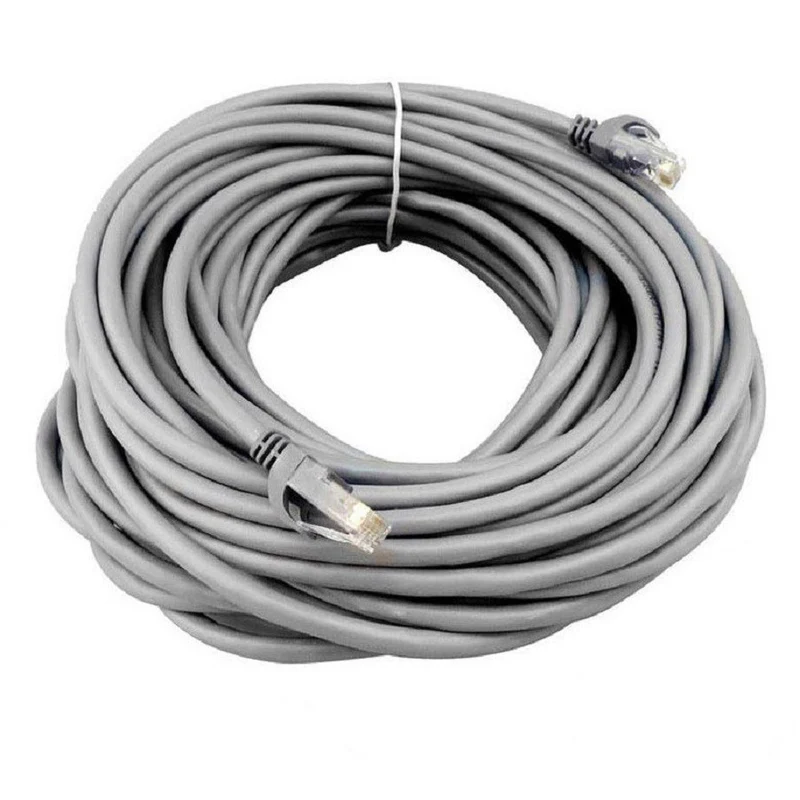

D-Link Cat6 UTP 24 AWG PVC Round Patch Cord – 1 Meter – Grey

The D-Link Cat6 UTP 24 AWG PVC Round Patch Cord (NCB-C6UGRYR1-1) is a high-performance Ethernet cable designed to deliver reliable data transmission across local area networks (LANs). With excellent build quality, this patch cord meets and exceeds industry standards such as TIA/EIA-568B.2, TIA/EIA-568C.2, and IEC 60603-7-4, ensuring optimal performance in demanding network environments. It is the ideal solution for applications requiring fast data speeds, high signal integrity, and superior reliability, such as video streaming, VoIP, and high-volume data transfers.

Product Features

High-Speed Cat6 Performance

Engineered to support high-speed data transmission, this Cat6 cable delivers superior performance for Gigabit Ethernet and other high-bandwidth applications.

Pure Bare Copper Conductors

Features 24 AWG solid bare copper conductors, which provide excellent conductivity and signal integrity, reducing latency and enhancing reliability in data transmission.

Unshielded Twisted Pair (UTP) Construction

The 4-pair UTP design reduces electromagnetic interference (EMI) and crosstalk, maintaining high-quality signal transmission without added bulk.

Flame-Retardant PVC Jacket

Constructed with a UL94V-0 rated PVC jacket that meets flame resistance standards (VW-1/FT-1), this cable is suitable for use in environments with strict fire safety requirements.

Durable RJ-45 Connectors

Equipped with high-quality transparent RJ-45 plugs, featuring 30-micron gold-plated contacts and robust phosphor bronze blades for long-lasting, secure connections.

Reliable in Various Temperatures

Built to perform across a wide operating temperature range, making it ideal for both residential and commercial environments.

Product Specifications

• Cable type: 4-pair unshielded twisted pair (UTP)
• Conductor: 24 AWG solid bare copper
• Insulation material: High-density polyethylene (HD-PE)
• Jacket material: Flame-retardant PVC, UL94V-0 rated
• Color: Grey
• Cable length: 1 meter
• Flame resistance: VW-1 (UL) / FT-1 (CSA) vertical flame test compliant
• Heat resistance: 60°C minimum
• Temperature range: -10°C to 80°C
• Modular connector: RJ-45 8P, transparent polycarbonate (PC), UL94-V-0
• Gold plating thickness: 30 micro-inches
• Contact blade: Phosphor bronze
• Dielectric withstanding voltage: 500V AC
• Insulation resistance: Maximum 35MΩ
• Durability: Tested for 750 mating cycles
• Cable-to-plug tensile strength: Minimum 20 lbs (89N)
• Electrical rating: 250V AC, 2A (maximum)
• Standards compliance: TIA/EIA-568B.2, TIA/EIA-568C.2, IEC 60603-7-4
