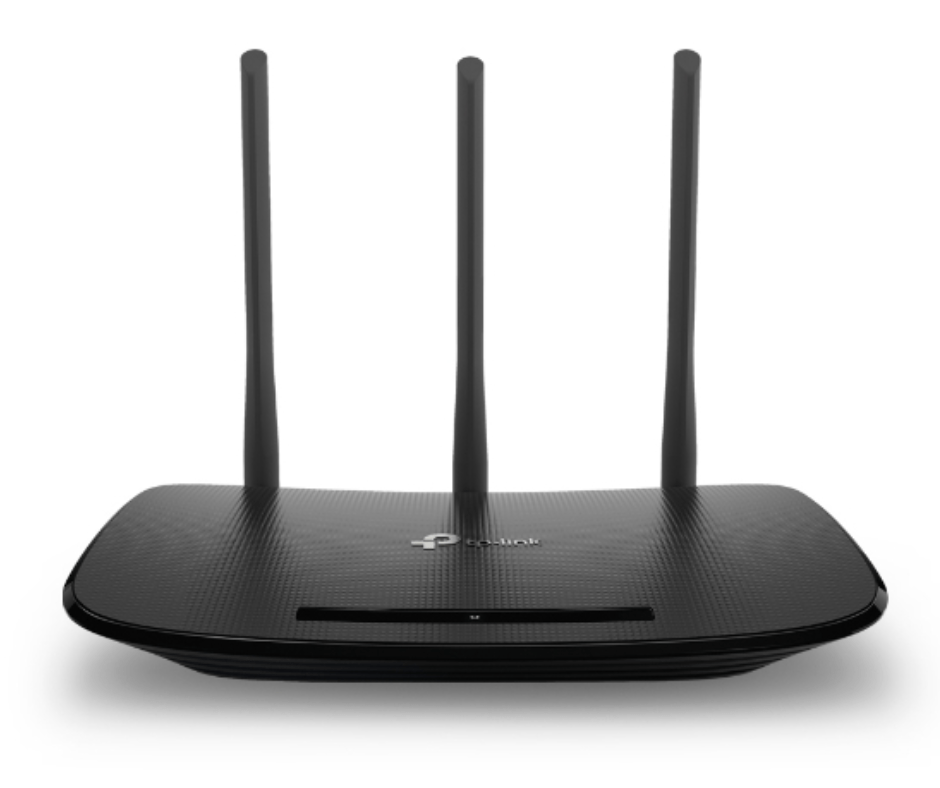

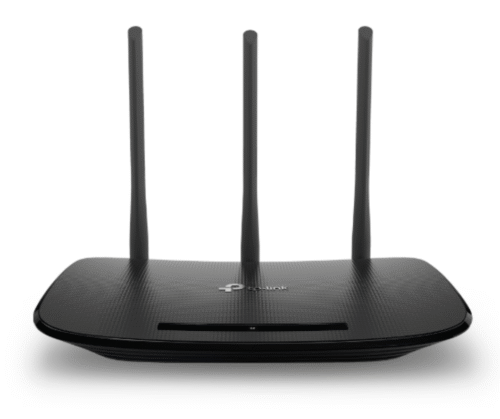

TP-Link TL-WR940N 450Mbps Wireless N Router

The TP-Link TL-WR940N 450Mbps Wireless N Router is a powerful and reliable networking device designed for home and small office use. Delivering speeds up to 450Mbps on the 2.4GHz band, this router ensures smooth HD video streaming, online gaming, and large file downloads without interruptions. Equipped with three high-performance antennas, it offers enhanced signal stability and broader coverage. With support for multiple operation modes, advanced bandwidth control, and a secure WPS setup, the TL-WR940N combines speed, security, and versatility for everyday connectivity needs.

Product Features

High-Speed Wireless Performance

Delivers up to 450Mbps on the 2.4GHz band, providing a reliable connection for bandwidth-heavy tasks like HD video streaming and online gaming.

Enhanced Wireless Coverage

Equipped with three fixed antennas that work in unison to boost signal strength, increase wireless stability, and expand coverage throughout medium-sized homes.

Multi-Mode Functionality

Supports Router, Access Point, and Range Extender modes, allowing flexible deployment based on network needs and layout.

One-Touch WPS Security

Secures your wireless network with a simple push of the WPS button, ensuring fast and encrypted Wi-Fi connections without manual configuration.

Intelligent Bandwidth Management

QoS by device feature allows you to allocate bandwidth based on priority, ensuring smoother performance for high-demand users or applications.

Product Specifications

• Wireless Standards: Wi-Fi 4 (IEEE 802.11n/b/g 2.4 GHz)
• Wireless Speeds: N450 (2.4 GHz: up to 450 Mbps)
• Coverage Range: Ideal for 2-bedroom homes
• Antennas: 3× fixed high-gain antennas
• WiFi Capacity: Legacy
• Operating Modes: Router Mode, Access Point Mode, Range Extender Mode

Hardware

• Processor: Single-Core CPU
• WAN Port: 1× 10/100 Mbps
• LAN Ports: 4× 10/100 Mbps
• Buttons: WPS/Wi-Fi Button, Power On/Off, Reset
• Power Supply: 9V ⎓ 0.6A

Security

• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network: 1× 2.4 GHz Guest Network

Software

• Internet Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV Support: IGMP Proxy, IGMP Snooping
• DHCP: Address Reservation, Client List, Server
• Dynamic DNS: NO-IP, Comex, DynDNS
• Management Tools: TP-Link Tether App, Web-Based Interface

Physical

• Dimensions: 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
• Package Contents: TL-WR940N Router, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

System Requirements

• Web Browser Support: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
• Required Equipment: Cable or DSL modem
• ISP Subscription: Required for internet access

Certifications and Environmental Conditions

• Certifications: FCC
• Operating Temperature: 0℃ to 40℃ (32℉ to 104℉)
• Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

Test Data

• WiFi Transmission Power: FCC <30dBm
• Reception Sensitivity:
  • 450M: -68dBm @10% PER
  • 216M: -70dBm @10% PER
  • 130M: -78dBm @10% PER
  • 54M: -74dBm @10% PER
  • 11M: -85dBm @8% PER
  • 6M: -88dBm @10% PER
  • 1M: -93dBm @8% PER
